Legacy Series

An ASME B89.1.10M Classic Dial Face with Compliance Data on Back

Legacy Gages

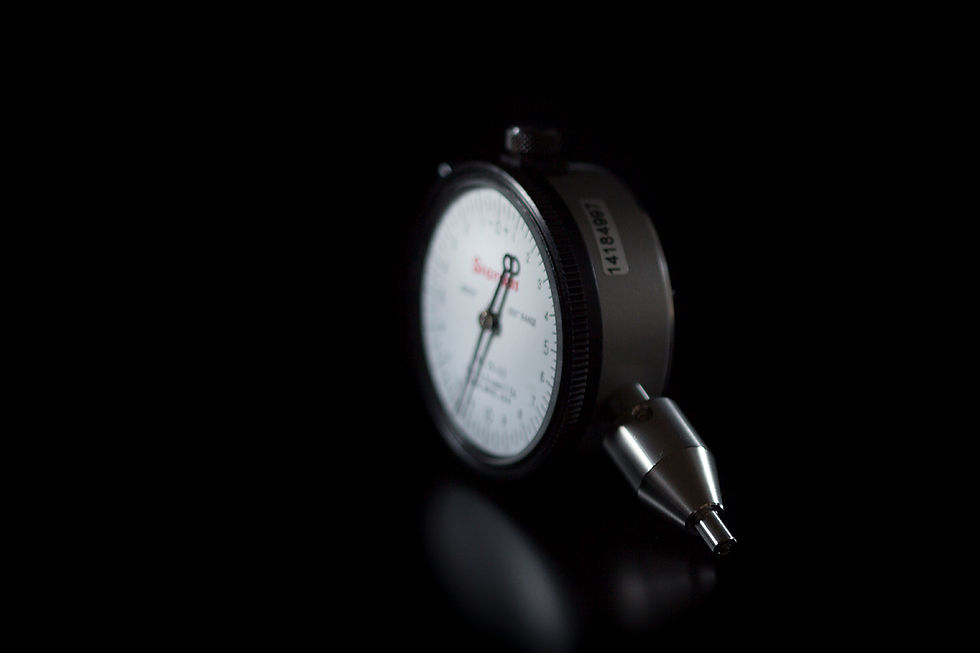

The Legacy series of gages was inspired by the engineers that prefer the traditional dial face.  The user can quickly test a connector and interpret the data for compliance to any industry standard or internal pass/fail requirements.  As an added value, VM includes a customized rear plate on the Legacy gage.  The rear plate provides common industry standard information for both procession (male) and recession (female) specifications.



Legacy gages are available for SMA pin measurements, SMA dielectric measurements, 3.5 and 2.92mm connectors or 2.4 and 1.85mm connectors.

Legacy Features

1.   ASME B89.1.10M Classic Dial Face



2.   Custom Rear Metal Plate with Compliance Data

       for Relevant Standards



3.   Certified Dial Accuracies from +/- .0005 to +/- .00025



4.   Tapered Bushing Design for Greater Feel & Visibility



5.   Single Gage for Both Male & Female Genders with

      No Change-Over or Remastering Requirements



6.   Single Flat Master for Error-Free Zero Setting

Vector Highlights
Legacy Images
Legacy Series Precision Gage Kit
Legacy Series Precision Gage Kit
press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

SMA Gage Front

press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

1.85mm-2.4mm & 2.92mm-3.5mm Gage Front

press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

SMA Gage Back

press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

1.85mm-2.4mm & 2.92mm-3.5mm Gage Back

press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

SMA Gage

press to zoom
Legacy Series Precision Gage
Legacy Series Precision Gage

1.85mm-2.4mm & 2.92mm-3.5mm Gage

press to zoom
Legacy Series Precision Gages
Legacy Series Precision Gages
press to zoom


Legacy Description
1.85 - 2.4 and 2.92 - 3.5 Kits
  • Guided bushing design eliminates torque requirement and associated torque uncertainty



  • Single bushing/rack patent pending design for the measurement of both genders



  • High performance analog Starrett meters with .00005 inch resolution



  • Certified accuracy from +/-.0005 to +/-.00025



  • Single flat surface master gage for the elimination of feature size uncertainty



  • Rear custom metal plate with permanently inscribed compliance data related to IEEE287LPC and GPC, MIL-C-39012, and MIL-STD-348B



  • Included ISO-17025 traceable Starrett calibration and certification



  • Included USB drive with A2LA calibration certificate

  • Included CRM72 tool steel hex driver with rockwell 50-61 hardness and corrosion-free finish



  • Included 25 sharp and dense point, small size, extremely low linting, static free swabs



  • Included one stainless handy wrench matching common microwave adapter AF dimensions



  • Instrument backs with Standards Requirements and interface metrics



  • Housed in a waterproof, crushproof NK-7 resin case with stainless steel power claw latching system and automatic pressure release valve
    (10.2" L x 7.8" W x 4.5" H exterior dimensions)



  • Gages come with a 1-year warranty and a 10-year warranty on stainless steel components



  • SMA Kits available for pin (SMA-P) and dielectric (SMA-D) measurements




Legacy Data Sheets

Legacy  Data Sheets for

2.92mm - 3.5mm Gage

Legacy Data Sheets for

1.85mm - 2.4mm Gage

Legacy Data Sheets for

SMA-P Pin Gage

Legacy Data Sheets for

SMA-D Dieletric Gage
